Product Identifier: 495750
This detailed description presents the water-cooled electrode set belonging to the professional welding technology accessories from Wieländer+Schill, specifically designed for high-performance spot welding applications. Electrode set No. 51 is made from high-quality materials and provides optimal performance during body repair work.
The Electrode Set No. 51 a robust, water-cooled electrode featuring a straight design and terminating at a 90° angle. The 420 mm length ensures ideal access to hard-to-reach welding points, while the water cooling guarantees continuous operation under high load by minimizing temperature increase.
This electrode set is exclusively compatible with X-Trafogun type welding guns, as well as InvertaSpot GT devices. Designed for professional use, the component ensures the creation of reliable and durable spot welds, essential for modern vehicle body repairs.
The main feature of the set is the high-quality CuCrZr (Copper-Chromium-Zirconium) material usage, which combines the excellent electrical conductivity of copper with the increased hardness and wear resistance provided by chromium and zirconium. This material composition is crucial for maintaining long service life and consistent weld quality.
The table below summarizes the critical technical parameters of Electrode Set No. 51:
| Property | Value | Note |
|---|---|---|
| Part number | 495750 | Factory Identifier |
| Length | 420 mm | Total length |
| Construction | Straight, terminating at 90° angle | Geometry |
| Cooling | water-cooled | Ensuring maximum load capacity |
| Material | CuCrZr (Copper-Chromium-Zirconium) | Excellent conductivity and hardness |
| Maximum Thrust Force | 0.600 kN | Force exerted during the welding process |
| Operating Pressure | 6 bar | Optimal operating pressure of the cooling system |
| Weight | 3.429 kg | Weight of the set |
| Compatibility | X-Trafogun, InvertaSpot GT | Exclusively compatible devices |
| Package contents | 1 set | Contents of the package |
1. Superior Heat Management and Service Life:
The integrated cooling system efficiently dissipates the heat generated during welding away from the electrode tip. This prevents the electrode from overheating, which would lead to slow welding speed and rapid electrode wear. The use of CuCrZr material further enhances thermal stability and mechanical strength.
2. Precise Welding Quality:
The 420 mm length and 90° angle allow for optimal positioning of the welding gun, even on complex body panels. The stable pressing force (0.600 kN) ensures proper contact between the workpieces, which is essential for solid and flawless resistance spot welding.
3. Professional Compatibility:
Optimized specifically for Wieländer+Schill's top-tier welding systems (X-Trafogun and InvertaSpot GT), this electrode guarantees the achievement of the performance parameters specified by the manufacturer.
4. Reliability in High-Volume Workshops:
Due to the massive construction and premium materials, this electrode set is the ideal choice for high-traffic body repair shops where continuous and reliable operation is critical.
For maximum efficiency and maintenance, we recommend using the following accessory product, which is compatible with electrode 51:
| Accessory Product | Part number | Description |
|---|---|---|
| Electrode tips | 497097 | **Electrode Tips |

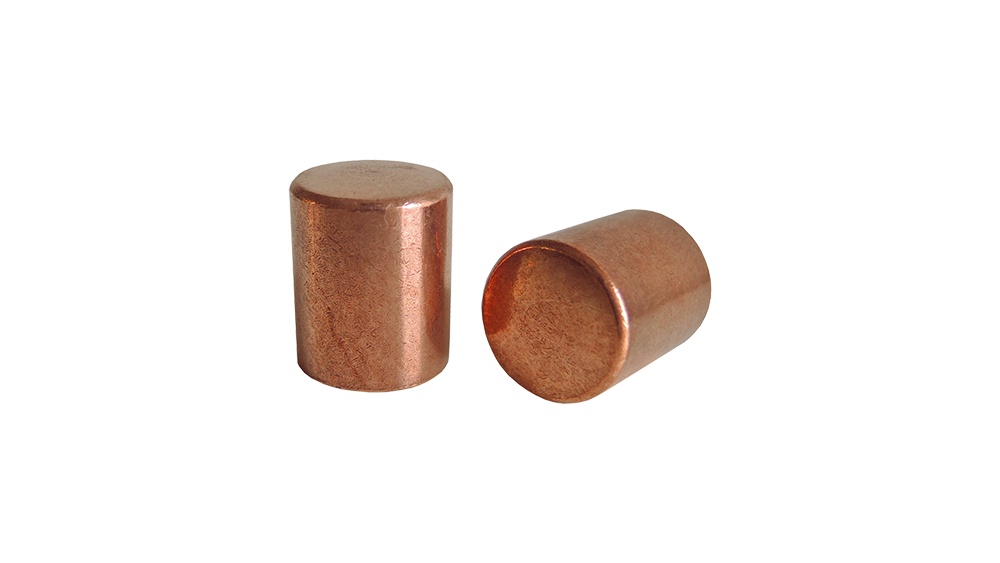

These A-40 type electrode tips with a diameter of 16 mm and a length of 20 mm (part number 497097) serve to replace worn parts, ensuring that the electrode tip always maintains its optimal geometry for precise welding.
This water-cooled, 420 mm long, straight electrode set represents the quality of Wieländer+Schill and is an indispensable tool for every professional performing the highest level of body repair work.
