This detailed product description is part of the Wieländer+Schill professional body-specific tool offering, specifically for the E1 + E2 tool set which is designed for the precise setting of Self Piercing Rivets (SPR) with a diameter of 5.0 mm. This set is essential during body repair work where reliable and durable connections must be established.
The E1 + E2 tool set, as part of the Wieländer+Schill XSeries professional riveting technology, ensures excellent quality, factory-level joints for SPR rivets. The use of self-piercing rivets is particularly widespread in modern vehicle body repair where traditional welding processes cannot or should not be used. This set guarantees optimal deformation of the rivet and a solid, durable fastening.

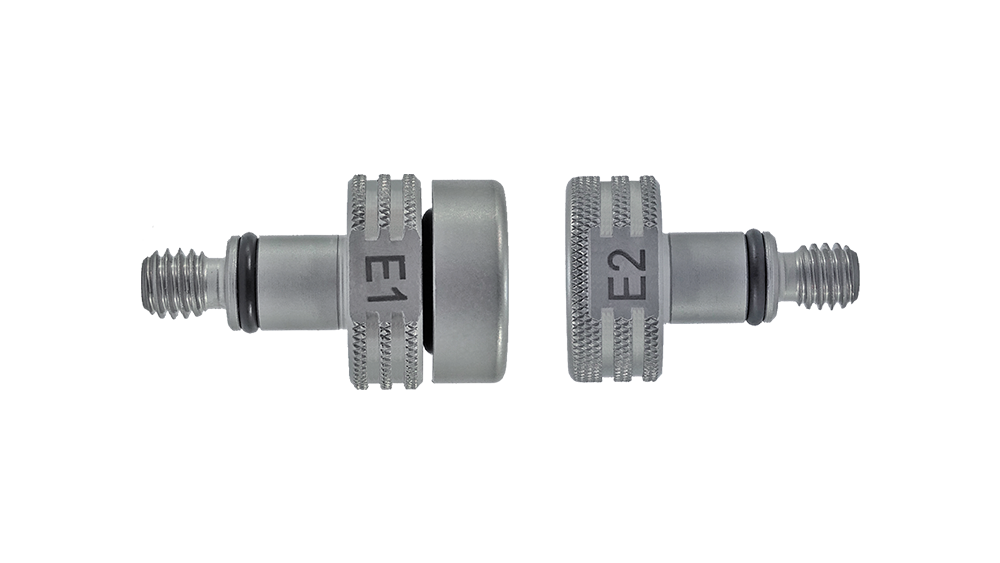

The set consists of two main components that work in synergy for a perfect riveting process: the E1 setting tool and the E2 closing tool.
Product part number: 700226. The set includes the following elements that ensure the complete SPR setting process:
| Part number | Designation | Function | SPR Diameter |
|---|---|---|---|
| 700260 | E1 | Setting die for Self Piercing Rivets (SPR) | 5.0 mm |
| 700261 | E2 | Closing die for Self Piercing Rivets (SPR) | 5.0 mm |

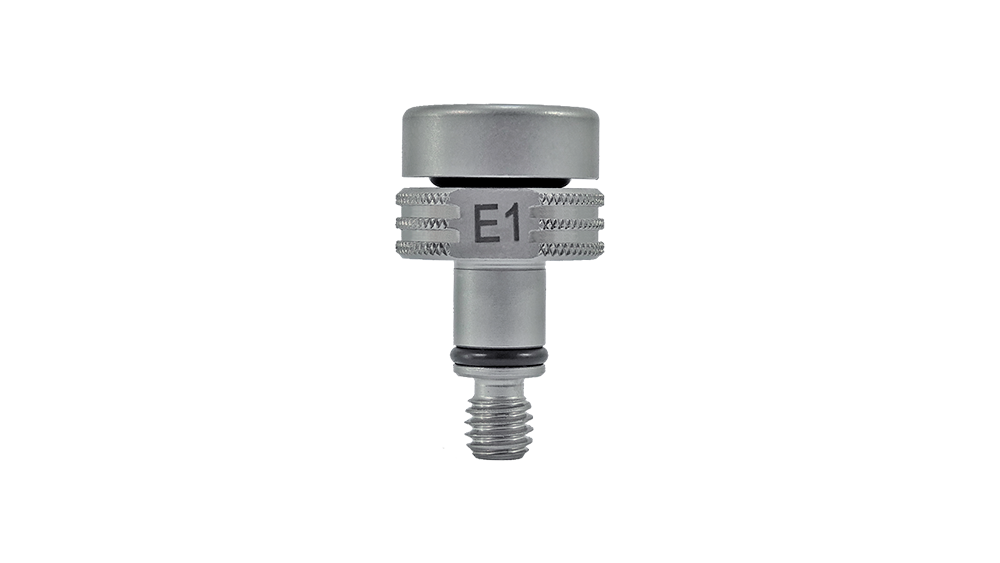

This tool is responsible for executing the initial phase of the riveting process. When inserting the rivet, the E1 tool precisely guides and prepares the rivet body for penetration into the sheet materials.
Main task: Initialization of the rivet head and body, and facilitating the proper displacement of the rivet material through the sheets.
Configuration: The design of the tool ensures perfect compatibility with 5.0 mm diameter SPR rivets, minimizing unnecessary wear and tool damage.

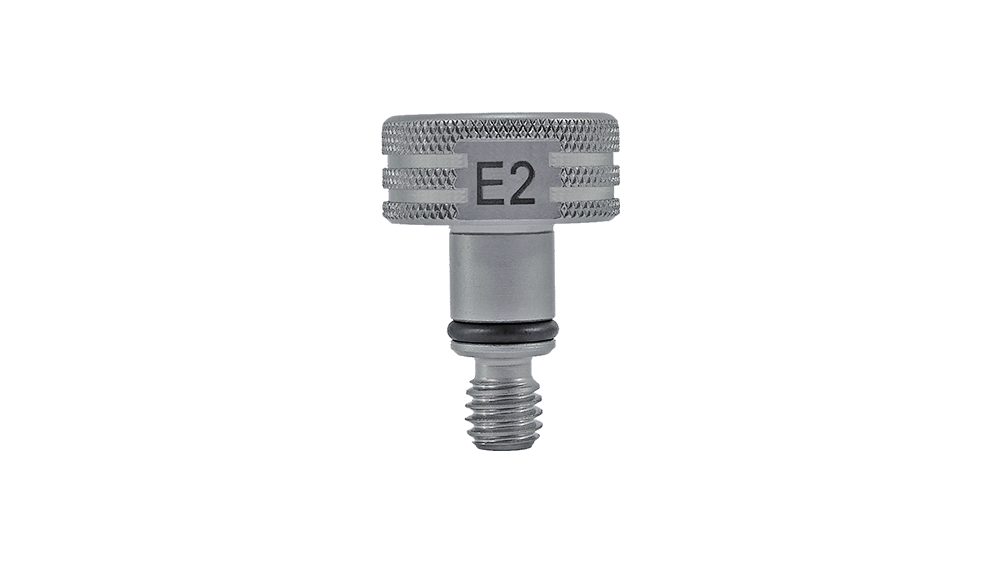

The E2 tool engages in the concluding phase of the riveting cycle. After the E1 tool has completed the penetration, the E2 tool closes the end of the rivet, creating a tight, controlled joint between the body panels.
Main task: Execution of the counter-side deformation of the rivet, which ensures tightness and mechanical stability.
Configuration: The shaping of the closing face is critical to the quality of the joint, ensuring that the shape of the rivet head conforms to standards and OEM specifications.
This tool set reflects the professional quality of Wieländer+Schill, focusing on durability, precision, and efficiency.
Compatibility: Specifically optimized for setting Self Piercing Rivets (SPR) with a 5.0 mm diameter.
System Integration: Designed for the XSeries professional riveting technology, ensuring compatibility with appropriate riveting machines.
Material quality: The tools are made from high-strength, wear-resistant materials that withstand high repetitive loads, guaranteeing a long service life.
Precise Geometry: The surface finish and dimensions of the tools are extremely precise, which is essential for safe and aesthetic joining.
Reliable Joint Quality: The two-part (E1/E2) system guarantees optimal force distribution across the entire cross-section of the rivet, meeting stringent automotive industry requirements.
Fast and Efficient Work Execution: They allow for quick replacement and simple installation into compatible riveting units, increasing workshop productivity.
Long Lifespan: The high-quality steel and precision machining minimize tool wear, thereby reducing maintenance and replacement costs.
OEM Compliance: Wieländer+Schill products often meet or exceed the specifications of automotive manufacturers (OEMs), which is essential for warranty repairs.
| Parameter | Value | Note |
|---|---|---|
| Product Category | Tool Set (Die Set) | XSeries Professional Riveting Technology |
| Application | Self-Drilling Rivets (SPR) Setting | |
| Rivet Diameter | Ø 5 mm | |
| Set Part Number | 700226 | |
| E1 Component Part Number | 700260 | Setting Tool |
| E2 Component Part Number | 700261 | Locking tool |
| Compatible System | SPR Technology |
This tool set is part of the broader Wieländer+Schill product range, which includes all necessary tools for body repair, from spot welders to sheet metal working tools. The product quality is also supported by the company's ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certifications.
For further questions regarding the use of the tools, or if you wish to receive information on prices and availability, please contact the distributor through the official channels associated with the product data sheet. Exact pricing and ordering information are generally available in the webshop after logging in.
