The Consul PneuLift® 0.35 FK BA is a robust, pneumatically driven, compact scissor lift developed specifically for the needs of professional body repair and paint shops. Thanks to its flexible dual lifting system, this model is excellently suited for lifting vehicles, whether they are standing on their wheels or for wheel-free lifting required for chassis repairs.
The PneuLift® 0.35 FK BA prioritizes reliability, safety, and flexible operation, utilizing the power of compressed air to eliminate the need for electrical energy.
This compact lift incorporates several design features that optimize workshop workflow and enhance safety:
Pneumatic Drive: It operates entirely on compressed air, thus requiring no electrical connection for operation. This is ideal for areas where electrical safety regulations are stricter, or where only pneumatic infrastructure is available.
Ease of Handling: Control is provided via a one-hand operated lever valve, allowing for intuitive and fast handling.
Robust Construction: Manufactured using high-quality components, guaranteeing long service life and reliable operation even under heavy use.
Two Lifting Modes:
Lifting on Wheels: The grated platform elements allow the vehicle to be picked up while standing on its wheels.
Wheel-Free Lifting: The base unit features pivoting arms that secure to the vehicle's factory jacking points, ensuring wheel-free lifting, ideal for chassis and brake maintenance.
Platform Securing: The platform elements can be secured at an lifting height of approx. 450 mm, providing a comfortable working height.
Manual Rocker Arm: The suspension arms are equipped with a manual locking mechanism to increase stability.
Csapágyazás és Csavarok: Series-bushed bearings and bolts ensure smooth movement and wear resistance.
Safety Systems:
Anti-Rollback Protection: Anti-roll mechanisms are integrated at the front and rear.
Fall Protection System: Load retention is ensured via a self-locking system.
Automatic Release: The locking mechanism automatically releases when the load is removed, facilitating lowering.
Design: This model BA (Bodenaufbau), i.e., supplied as a floor-mounted version. Optionally available BE (Einbau), i.e., in a sunken (recessed) design, also with CE-stop function.
Aesthetics: The structure is painted in RAL 9005 (jet black) and RAL 7035 (light grey).
The precise technical parameters of the Consul PneuLift® 0.35 FK BA lift are as follows:
| Characteristic | Value | Note |
|---|---|---|
| Part Number (SKU) | 731190 | |
| Manufacturer Number (HAN) | 500455 | |
| Category | Pneumatic Scissors Lift Tables | |
| Rated load capacity | 3,500 kg | 3.5 tons |
| Maximum lifting height | approx. 1,310 mm | |
| Lifting height (basic) | ca. 147 mm | For floor-mounted version |
| Length (Runway width) | ca. 1.980 mm | |
| Width (Runway length) | ca. 3.700 mm | |
| Total length with ramps | approx. 4,857 mm | With the use of the included ramps |
| Maximum air pressure | 8 bar | Compressed air required |
Detailed documentation is available for the product to support installation and use:
Product Brochure: Detailed description in PDF format.
Installation plan: Precise guide for professional installation.
Videos: Introductory videos available on the product's operation (in German and English).
To increase the performance and functionality of the PneuLift® 0.35 FK BA lift, the following accessories are recommended (available separately):
Consul Cover Plate: 1-meter long cover plate for covering the air connection lines, including fastening materials.

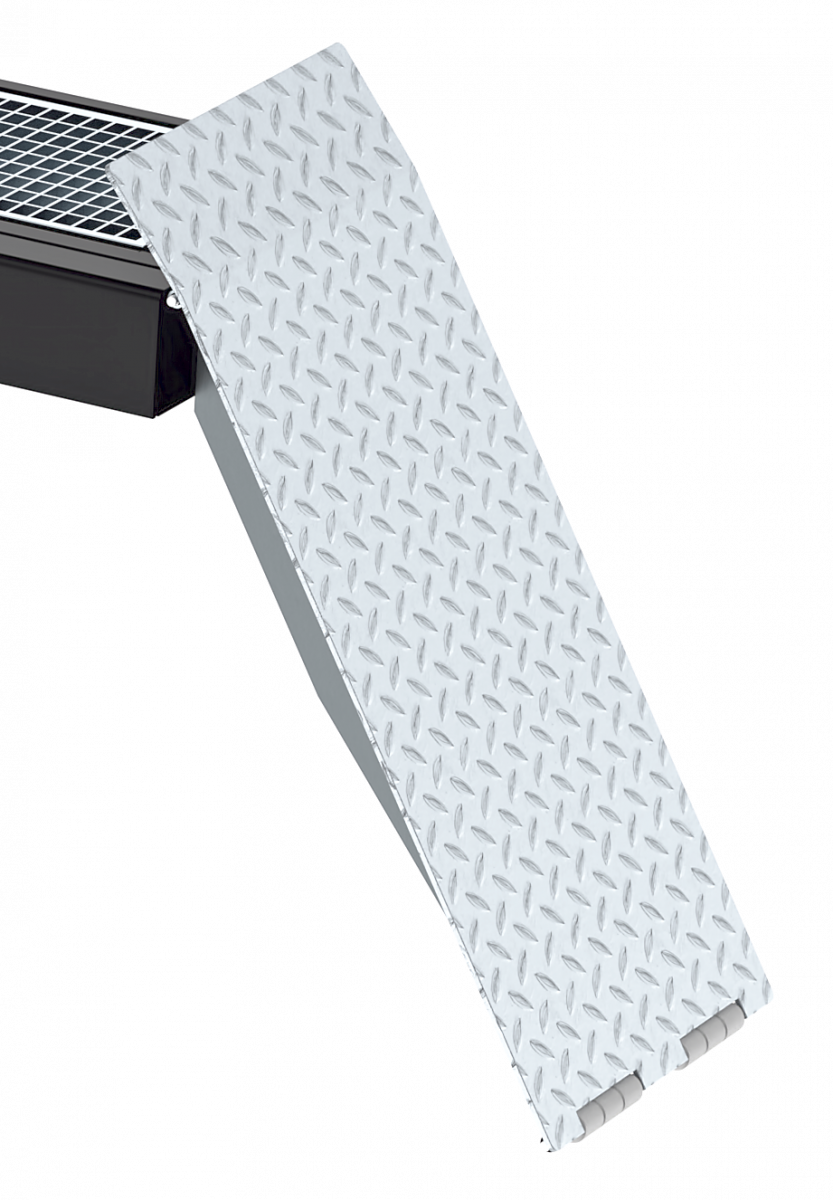

Consul Drive-on Ramp incl. Holder: Ramp required for easier vehicle access, with supporting elements.
Consul Control Unit Ex Ante: Stand-alone control unit for options.
Consul Fixing Material: Fixing set supplied with 4 M12 anchor bolts and screws for professional mounting.
Consul Special Painting: Possibility of painting in a custom color by providing the RAL color code.
The Consul PneuLift® 0.35 FK BA is the ideal choice for workshops that are looking for a reliable, flexible, and pneumatically operated lift with a short lifting height for everyday bodywork tasks.
