The Consul PneuLift® 0.35 F BA is an exceptionally high-quality, pneumatically driven compact scissor lift, developed specifically for the needs of professional body repair and paint shops. This model combines reliability, robust design, and flexibility in use, while eliminating the complexities associated with electric drives.
The design of the PneuLift® 0.35 F BA prioritized maximum safety and efficient performance. The pneumatic technology guarantees that the lift can be operated safely even during a power outage, which can be critical during body repairs.
Pneumatic Drive: No electrical power is required for operation. This feature increases flexibility in workshop layout and ensures continuous operation.
Control via Manual Lever Valve: Enables intuitive and precise control for the user over the hydraulic system.
Robust Construction: Manufactured using high-quality components, ensuring a long service life and reliable performance even under heavy use.
Lattice Platform Elements: The lattice design of the approach ramps ensures optimal grip for vehicle wheels.
Csapágyazás és Csavarok: Bush-equipped bearings and bolts at critical points ensure smooth movement and reduce wear.
Anti-Roll Back Protection: Features built-in anti-rollback protection at the front and rear for maximum stability.
Rögzítő Mechanizmus: Equipped with an automatic locking system that securely fastens the lift at the desired height.
Automatic Latching Release: Automatic release of the safety system facilitates work processes.
On-floor Version: The standard design allows for easy driving on and off the vehicles directly from the floor level.
Optional Inground Installation Version (BE): An inground version equipped with a CE-stop function is also available for an even more discreet and space-saving installation.
Color Coding: The standard version is painted in RAL 9005 (deep black) and RAL 7035 (light grey).
The precise specifications of the Consul PneuLift® 0.35 F BA ensure that it meets the strictest workshop requirements.
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 731000 | |
| Manufacturer Number (HAN) | 500453 | |
| Category | Pneumatic Scissors Lift Tables | |
| Rated load capacity | 3,500 kg | 3.5 tons |
| Lifting height | approx. 1,310 mm | |
| Drive-up height | ca. 147 mm | For the on-floor version |
| Width of approach ramps | ca. 1.980 mm | |
| Length of approach ramps | ca. 3.700 mm | |
| Installation length with ramp | approx. 4,857 mm | |
| Air supply (max.) | 8 bar |
The Consul PneuLift® 0.35 F BA system can be customized with several accessories to meet the specific needs of the workshop.
Detailed documentation is available for the product to support installation and use:
Catalogue (Brochure): Detailed overview of the product features.
Installation plan: Precise guide for professional installation.
For a more efficient and aesthetic installation, the following accessories are available:
Consul Cover plate: 1 meter long cover plate for covering air connection cables, including mounting materials.

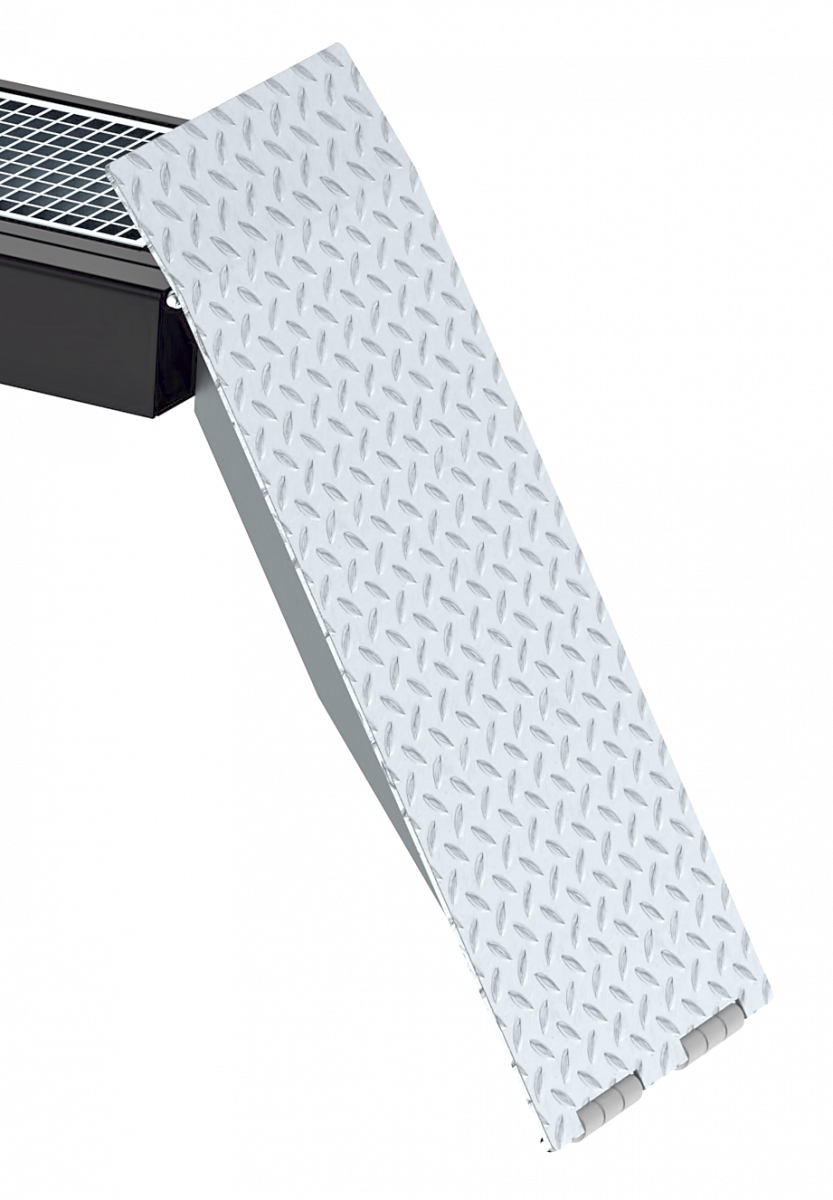

Consul Drive-on Ramp incl. Holder: Assists in the safe ascent of vehicles onto the lift.

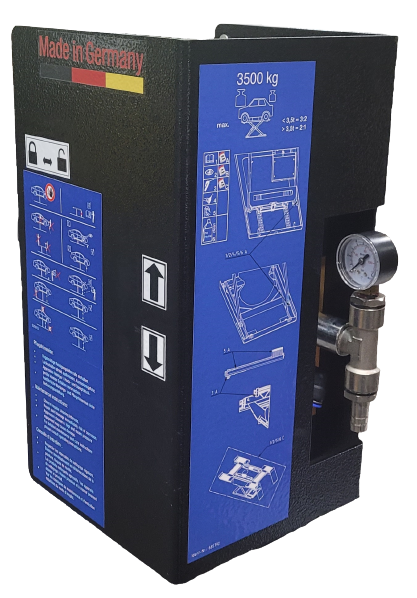

Consul Control Unit Ex Ante: Standalone control unit for operation.
Consul Fixing Material: Includes 4 pieces of M12 reaction bolts and other fastening elements for professional mounting.
Consul Special Painting: Option for painting in a custom RAL color code to match the workshop's corporate identity.
The Consul PneuLift® 0.35 F BA is the ideal choice for professionals looking for a reliable, pneumatic, compact lift that provides maximum safety in daily work with minimal maintenance requirements.
