The Consul 2-Post Lift Premium EL® 2.06 LV model is a high-quality, base-frame-less (platform-less) two-post lift specifically designed for lifting Automated Guided Vehicles (AGVs), with a maximum load capacity of 600 kg. This equipment offers a combination of reliability, precise control, and safety for modern workshop environments.
This model is an ideal choice for facilities where the entry and exit direction of the vehicles is perpendicular to the lift posts, ensuring optimal space utilization and smooth workflow.
The Consul EL® 2.06 LV lift incorporates several design elements that guarantee a long service life and user-friendly operation:
Special Rolled Columns: The lift posts are made of special cold-formed profile, which ensures exceptional stability and load-bearing capacity.
Carriage Drive: The load-bearing carriages are guided by six (6) rollers, allowing for an extremely smooth and precise lifting/lowering movement.
Safety and Load System: The load nut is made of bronze, while the safety nut is made of alloy, guaranteeing durability.
Lubrication System: Built-in oil dispenser ensures continuous lubrication, minimizing friction and wear.
Broken Nut Locking: The lift features broken nut raise lock-down features, which adds a critical layer of safety to the system.
Acoustic Foot Protection: Built-in acoustic protection guards the operator's feet against accidental injury during lowering.

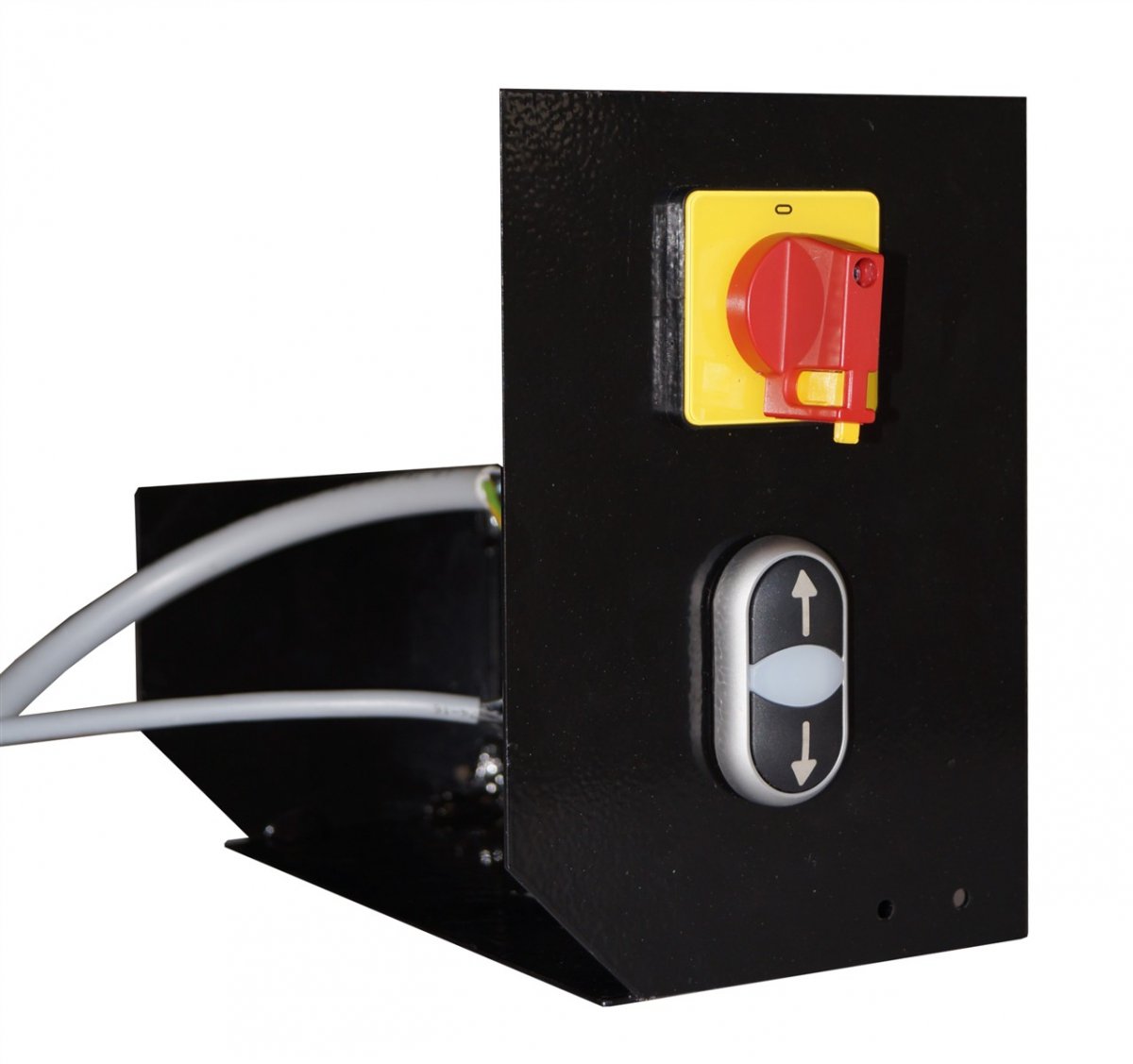

Control: Control is via a Softline push-button panel which features a computer guided leveling system for perfect horizontal positioning.
Main Switch: A lockable main switch located directly on the post ensures immediate and safe power disconnection.
Full Enclosure: The interior of the post is completely covered (Complete covering of post interior), which protects the internal mechanics from contamination and enhances the aesthetic appearance.
Lifting Arms and Pads: Equipped with a Cushioning door stop and an adjustable loading plate (approx. 25 mm).
Arm Locking: The locking mechanism for the arms is easily adjustable and can be set in 300 mm increments.
The precise technical parameters of the Consul EL® 2.06 LV lift are as follows:
| Characteristic | Value | Note |
|---|---|---|
| Part Number (SKU) | 702001 | |
| Manufacturer Number (HAN) | 421577 | |
| Category | Logistics Vehicles | |
| Rated load capacity | 600 kg | Ideal for AGVs |
| Lifting height | approx. 1,860 mm | |
| Lifting/Lowering Time | approx. 35 seconds | |
| Bottom clearance | approx. 20 mm | Under optimal floor conditions |
| Long arm extension range | approx. 820 – 1,460 mm | 2-piece version |
| Set-up width | approx. 3.400 mm | |
| Installation Height | ca. 2.560 mm | |
| Distance between arms (Clear span) | approx. 2.830 mm | |
| Drive-through width | ca. 2.520 mm | |
| Power supply | 400 V / 50 Hz | Three-phase |
| Drive Power | 2 x 3.0 kW | |
| Fuse Protection | 20 A slow-blow fuse |
This lift complies with the strictest European safety and quality requirements:
Protection Class: IP 54
Approvals: GS-approved, DIN EN 1493, CE-approved
The Consul EL® 2.06 LV lift can be flexibly extended to meet individual needs:
Self supporting base frame (Self supporting base frame): Optional self-supporting base frame, which is particularly useful if floor conditions are not ideal for direct mounting.
Second Control Unit (2nd control unit): It is possible to install a second control unit, which increases handling convenience in the workshop.
Drive-on Ramps (Drive-on ramps): If needed, a 4-piece set of approach ramps is available for easier vehicle access.
Fixing Materials: Fasteners with different load capacities (e.g., M12 anchor bolts) are available for mounting on solid floors.
Base plate fixing bars: Reinforcing bars usable up to a load capacity of 4,000 kg, recommended for concrete thicknesses between 150-210 mm.
Detailed technical and installation documentation is available for the product in PDF format:
Product Brochure: Detailed overview of the C-Line 2.xx – 2.5t LV series.
Installation plan: Specific guide for the installation of the Consul 2.06 LV model.
The Consul Premium EL® 2.06 LV lift is the reliable, safe, and efficient solution for precise lifting tasks in the maintenance of automated vehicles.
