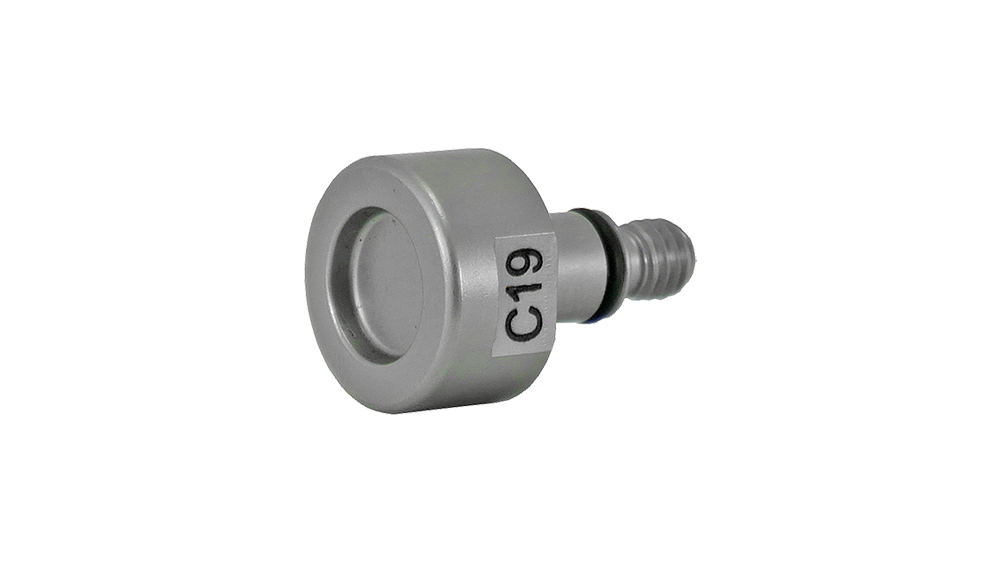

This detailed product description presents the C19 type Closing Die (Closing Die) manufactured for the Wieländer+Schill XSeries professional riveting technology, specifically developed for the professional and precise closing of self-piercing rivets (SPR). This component is crucial in body repair processes, ensuring durable and factory-quality joints.
The C19 closing die is an essential accessory for Wieländer+Schill's professional riveting systems (XSeries). Its main function is to precisely shape the opposite side of the rivet head during the riveting process, thus ensuring the perfect and solid joining of two or more layers of material. Specifically for the self-piercing rivets (SPR) applications optimized for the repair of modern vehicle bodies, which are indispensable for creating high-strength, riveted joints.
The design of the die guarantees the achievement of standardized closing forces and shapes corresponding to the specified Ford identifiers, which is essential for maintaining the structural integrity of the car body.
This precision component features the following identifiers and technical parameters:
| Property | Value |
|---|---|
| Item number | 703226 |
| Designation | C19 Closing Die For Self-Piercing Rivets (SPR) |
| Compatibility (Ford ID) | DG1102200 HR1R1,5 |
| Material composition | Rubber, Steel |
| Length | 18 mm |
| Width | 18 mm |
| Höhe | 27 mm |
| Weight | 0.010 kg |
The die is constructed from two main materials that ensure optimal performance and long service life:
Steel: The main structural element of the die, which ensures the necessary mechanical strength and resists the high pressure and wear that occur during riveting. The precision machining of the steel guarantees an exact fit and durable operation.
Rubber: The rubber component generally serves for mounting, vibration damping, or perfect support of the workpiece, preventing surface damage near the riveting point.
The compact dimensions (18 x 18 x 27 mm) allow for easy handling of the die and its integration into the appropriate riveting head, even in tight body panels. The weight of only 10 grams contributes to fast and fatigue-free work.
By using the C19 closing die manufactured by Wieländer+Schill, users benefit from the following advantages:
Factory Quality Joints: The specific design of the die (Ford ID: DG1102200 HR1R1,5) ensures that the closing of the SPR rivets complies with manufacturer specifications, which is critical from the perspective of vehicle passive safety systems.
Long Lifespan: The use of high-quality steel guarantees the die's resistance to high repetitive loads, minimizing wear and the need for replacement.
Compatibility: Can be directly integrated with Wieländer+Schill XSeries professional riveting machines and tool kits.
Precise Operation: The precise geometry of the die ensures optimal deformation of the rivet head, which is essential for a leak-proof and maximally load-bearing connection.
The product is part of the broader quality management system of Wieländer+Schill, which is recognized in the body repair industry. The company's commitment is also supported by the following certifications:
ISO 9001: International standard for quality management systems, ensuring consistent product quality and customer satisfaction.
ISO 14001: Standard concerning environmental management systems, which regulates the environmental aspects of manufacturing processes.
This closing tool is therefore not just a component, but a precision device that meets the highest professional requirements in the field of vehicle maintenance.
