Product Identifier: 474007NG
This high-quality, cooled C-arm (C-Arm No. 7) is specifically for the InvertaSpot NexGen designed for resistance spot welding machines. The product meets the highest load requirements, guaranteeing consistently perfect welding results and maximum stability, even during the most demanding applications. Ideal choice for high-usage workshop environments where precision and reliability are key.
The C-Arm No. 7 is an integral part of the Wielander + Schill welding technology portfolio, prioritizing efficiency and long service life.
High Load Capacity: Design optimized specifically for high-duty welding tasks, ensuring long-term, reliable operation.
Cooling Capability: The arm's cooled design prevents overheating during intensive use, thereby increasing electrode life and maintaining the consistency of welding parameters.
Excellent Work Area: The 150 x 200 mm working opening provides sufficient flexibility to reach and weld various sizes of body parts.
Compatibility: Exclusively for the InvertaSpot NexGen recommended for use with series spot welding machines.
Premium Materials: The materials used (CuCrZr, stainless steel, steel) guarantee mechanical strength and excellent electrical conductivity.
The following table details the critical technical parameters of the C-Arm No. 7:
| Property | Value | Note |
|---|---|---|
| Product Identifier | 474007NG | Factory Part Number |
| Compatible Machine | InvertaSpot NexGen | Resistance Spot Welding Machine |
| Working Opening (Width) | 150 mm | |
| Working Opening (Height) | 200 mm | |
| Total Length | 175 mm | |
| Total Width | 160 mm | |
| Total Height | 40 mm | |
| Weight | 1.750 kg | |
| Material composition | CuCrZr, Rubber, Stainless steel, Steel | For the sake of durability and conductivity |
| Coating | PU (Polyurethane) | For the external protection of the arm |

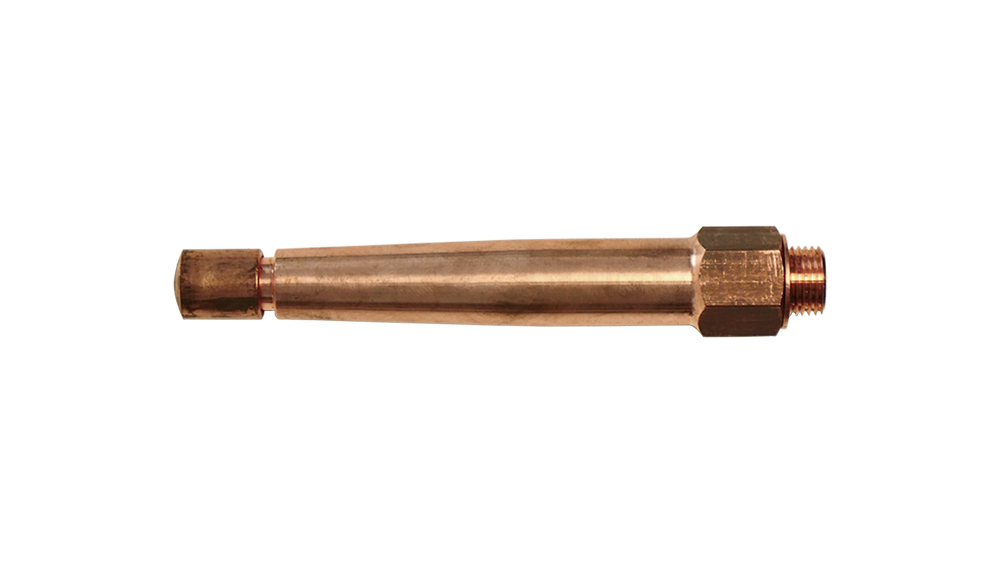

| Accessory (Electrode) | 1 pc Electrode 495667 | 135 mm long, with Ø 16 mm electrode tip |
When purchasing the C-Arm No. 7, the package includes the following items:
1 pc Assembled C-Arm No. 7
1 pc Electrode Type 495667: 135 mm long, with Ø 16 mm diameter electrode tip (supplied with electrode tip).
This configuration ensures an immediately ready-to-use state on the compatible welding machine.
For maximum welding quality and maintenance, we recommend using the following accessories, which optimize the work with the C-Arm No. 7:
Selecting the appropriate electrode tip is essential for different welding geometries and material thicknesses. All accessory electrode tips have a Ø 16 mm diameter and a length of 20 mm (except for special types).
| Part number | Típus | Description | Package contents |
|---|---|---|---|

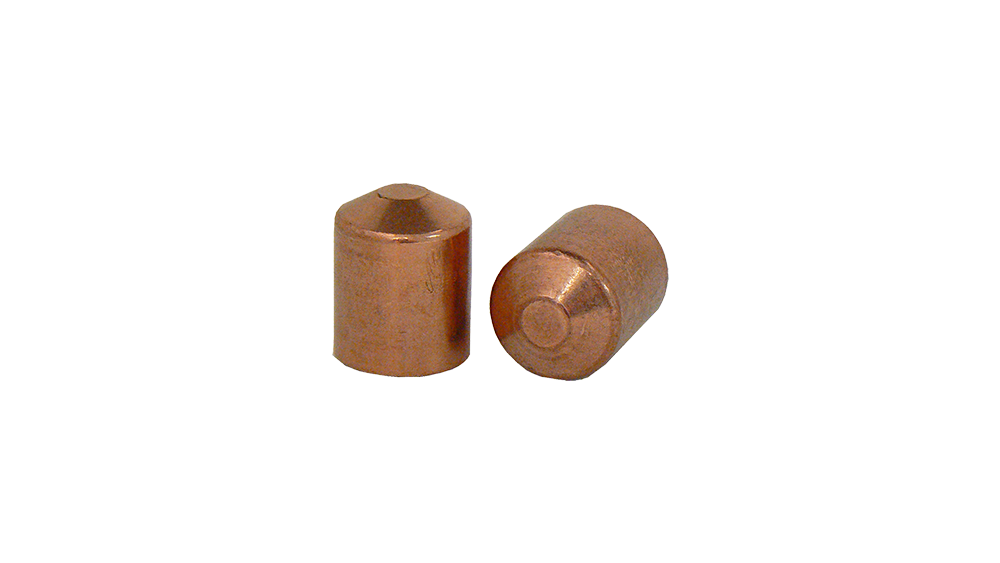

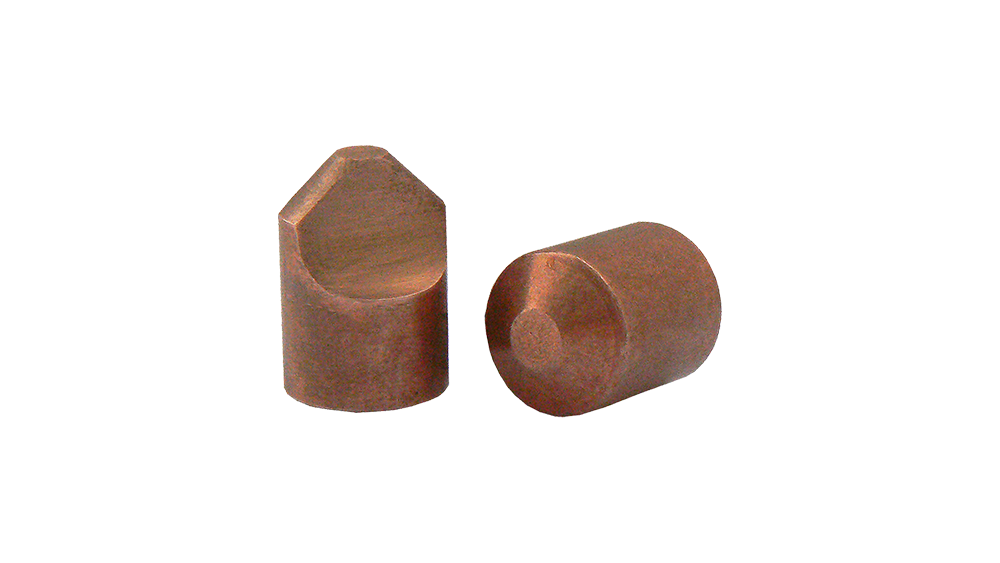

| 497102 | Form B + Form H Set | Set of mushroom-flat (B) and H-shaped electrode tips. | 2 pcs B + 2 pcs H |
| 497079 | Type B | Mushroom-flat shaped electrode tip. | 4 pcs/PU |

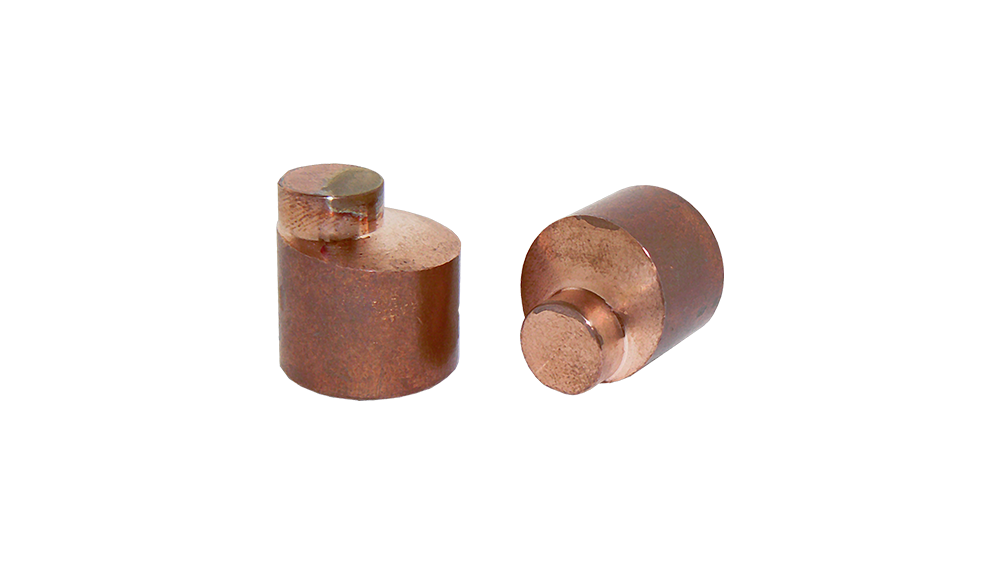

| 497081 | Type E | Specially designed electrode tip. | 4 pcs/PU |

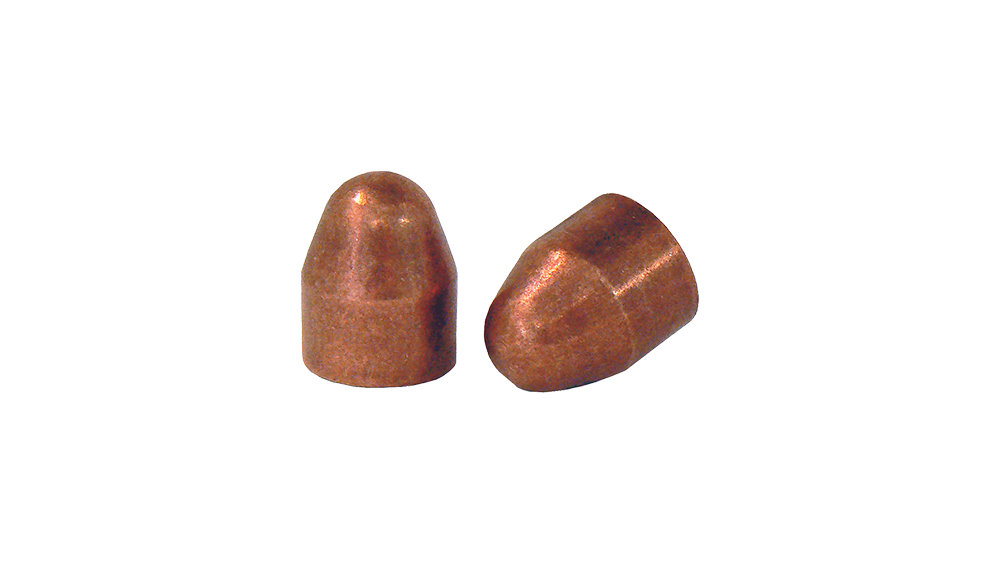

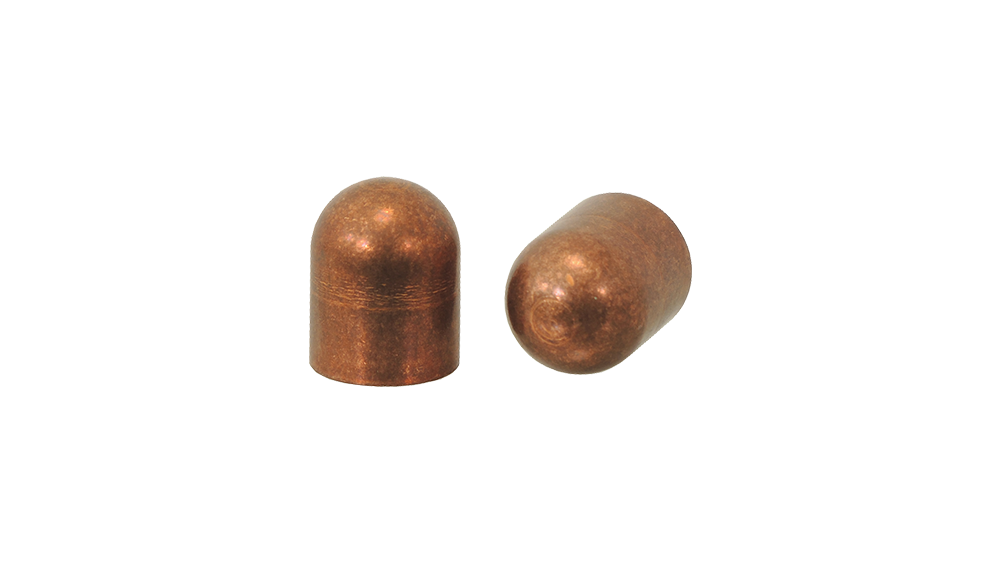

| 497075 | Type F | Round shaped electrode tip. | 4 pcs/PU |

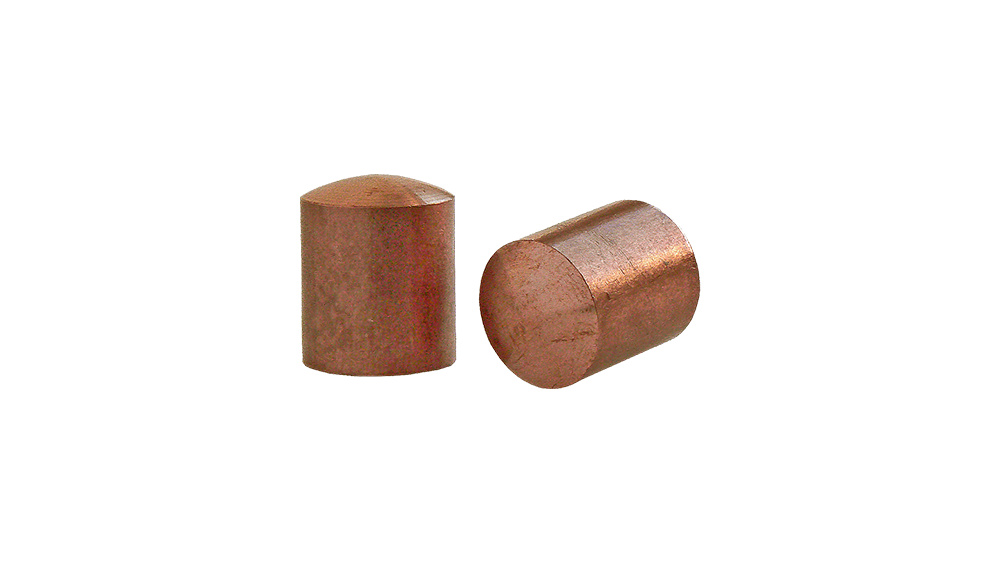

| 497076 | Type P | Eccentrically shaped electrode tip. | 4 pcs/PU |
| 497096 | Type A-32 | Special type for automatic welding, exclusively for C-Trafogun GT-V6. | 6 pcs/PU |
A clean electrode surface is essential for accurate spot welding.
This C-Arm No. 7 represents the pinnacle of Wielander + Schill's professional welding technology solutions, guaranteeing the precision and durability expected during auto body repair work.
