This detailed description presents the Wieländer + Schill WSM30 + Kit M type automatic stainless steel paint spray gun washing unit, which offers an ideal solution for the efficient and safe cleaning of paint spray guns for modern paint shops. The system can be optimally used in conjunction with Prolaq WS cleaning agents.

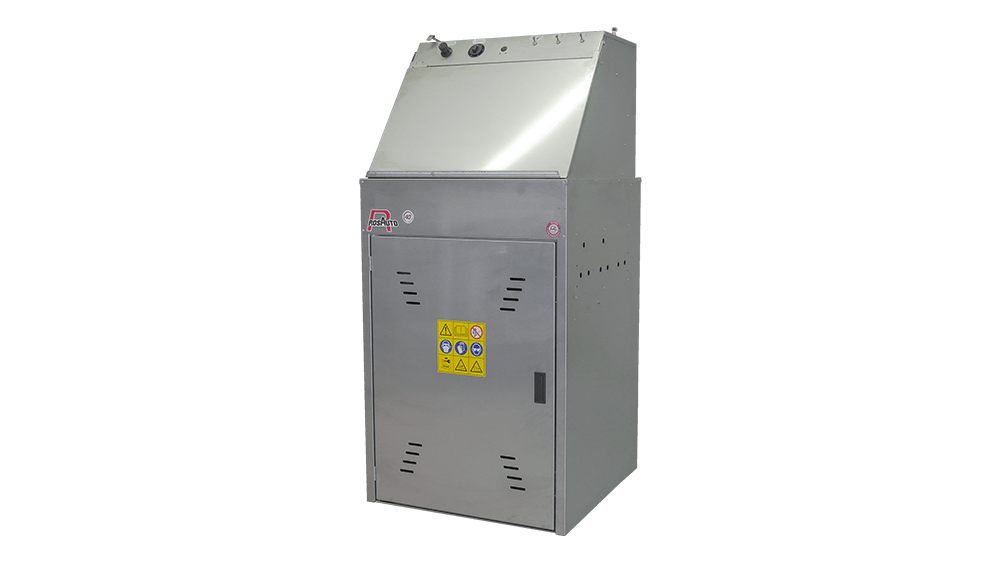

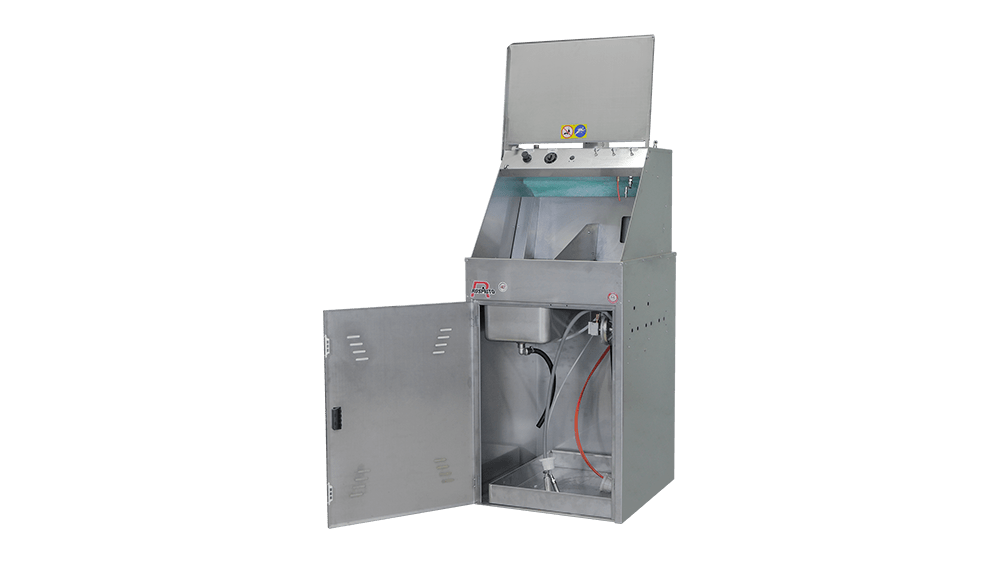

The WSM30 automatic washing unit is a unit built into a robust stainless steel housing, designed for the fast and thorough cleaning of paint spray guns. The device uniquely separates the pre-wash and main wash phases from the manual rinsing area, ensuring strict separation of fluids thanks to dedicated drainage systems. This segregation prevents the mixing of different cleaning and rinsing fluids, maximizing cleaning efficiency and minimizing contamination.
The unit is excellently suited for removing residues of water-based and solvent-based paints, lacquers, and clear coats. The stainless steel construction guarantees a long service life and excellent resistance to chemicals.
Two-stage Cleaning: Separation of automatic pre-wash and main wash from manual rinsing.
Separate Drainage: Both automatic and manual sections have separate drains to prevent fluid mixing.

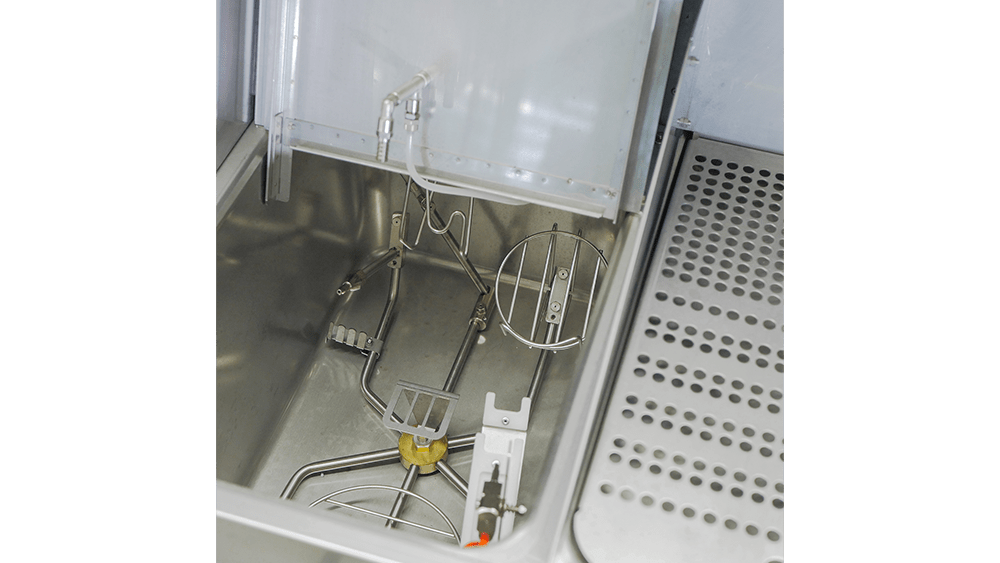

High Capacity: The automatic section can hold 2 spray guns simultaneously, allowing for the automatic cleaning of 2 guns at once.

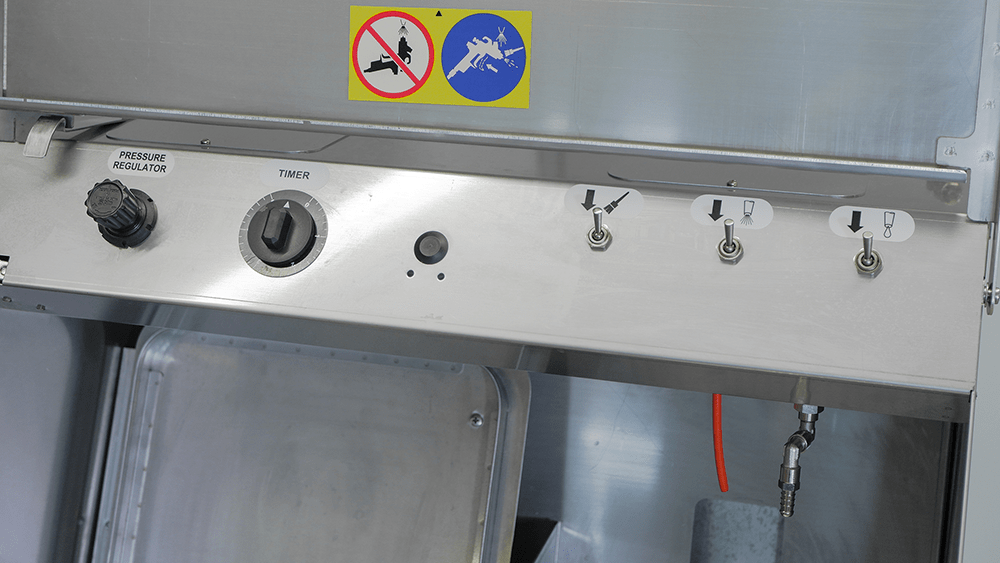

Timer Function: The cleaning duration can be individually regulated by an adjustable timer, optimized for different contamination levels.
Automatic Extraction: An integrated extraction system in the work area ensures the effective removal of vapors and aerosols, improving workplace conditions.
Robust Design: Fully stainless steel housing for maximum durability.
Excellent Pump: High-quality diaphragm pump ensures optimal flow and pressure.
ATEX Certification: ATEX II 2G certified design, allowing use in potentially explosive environments (with appropriate cleaning agents).
The WSM30 + Kit M offers precise engineering solutions detailed in the following table:
| Property | Value |
|---|---|
| Part number | 837253 |
| Temperature Class | ATEX II 2G |
| Material | Stainless steel |
| Dimensions (Length x Width x Height) | 692 x 685 x 1490 mm |
| Operating Pressure | 6 – 10 bar |
| Weight | 75 kg |
| Gun Capacity (Automatic) | 2 pcs |
| Cleaning Modes | Automatic and Manual |

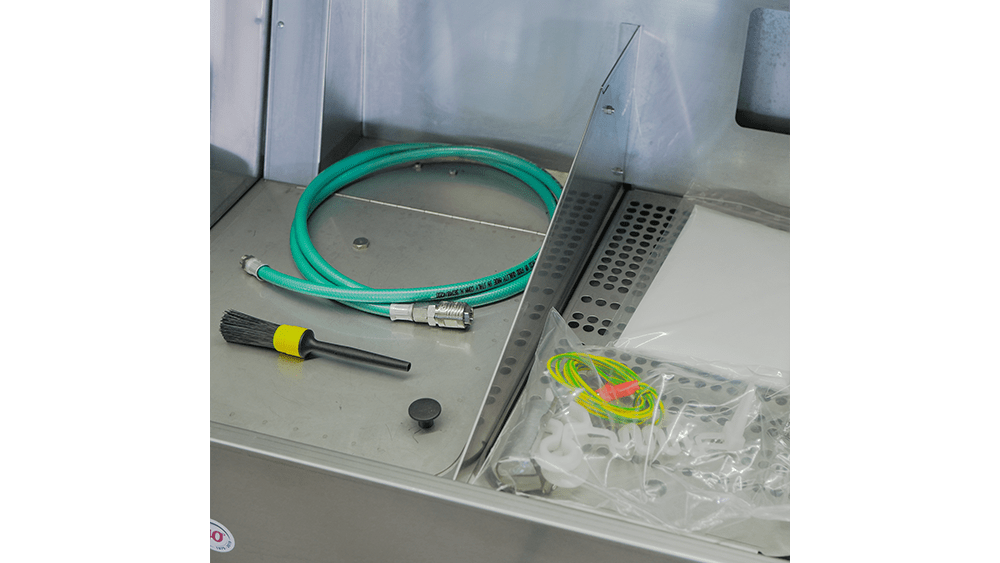

The WSM30 washing station, as part of the „Kit M”, includes the following essential accessories for immediate commissioning:
1 pc Paint spray gun washing unit (WSM30)
2 pcs Plastic clamps for paint spray guns
1 pc Flexible hose (1 m long, Ø 10 mm)
1 pc Compressed air line (2 m long)
2 pcs Cleaning brush
1 pc Grounding cable
To ensure maximum cleaning performance and long-term system efficiency, the use of the following accessory products is recommended, which work in synergy with the WSM30 unit:

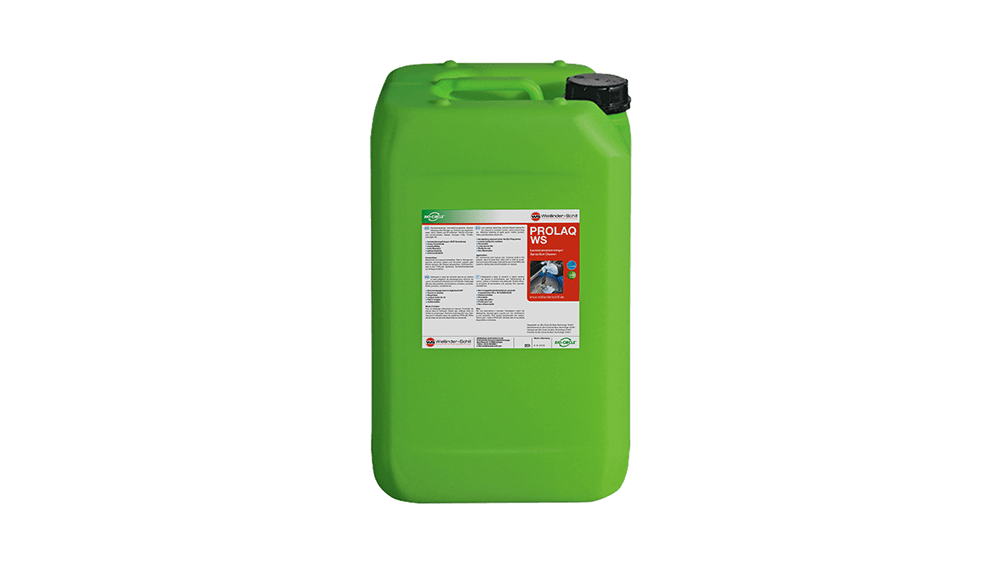

The PROLAQ WS lacquer remover has outstanding cleaning power for both water-based and solvent-based lacquers and paints. Dries quickly and almost residue-free.
Előnyök:
Does not require a hazard label, an excellent alternative to cellulose thinners.
Increases service life thanks to its recyclability.
VOC content: reduced with 45%.
5-10 times longer service life (recyclable).
Capable of removing primarily solvent-based and water-based paints.
Cleans all paint application equipment, paint pumps, pressure rollers, etc.

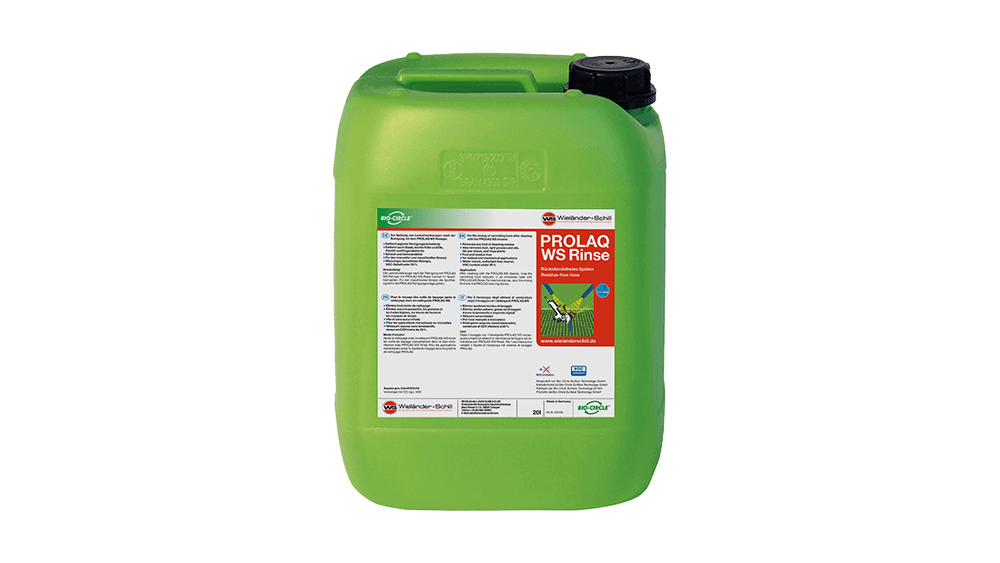

This product is intended for rinsing after cleaning with the PROLAQ WS cleaner.
Properties:
Removes cleaning residues, dust, light grease, oil, marker pen marks, and fingerprints.
Fast and residue-free drying.
Water-based cleaner, free from surfactants.
VOC content below 20%.
Can be used manually (in a dipping bath) or automatically (dosed into the cleaning system).

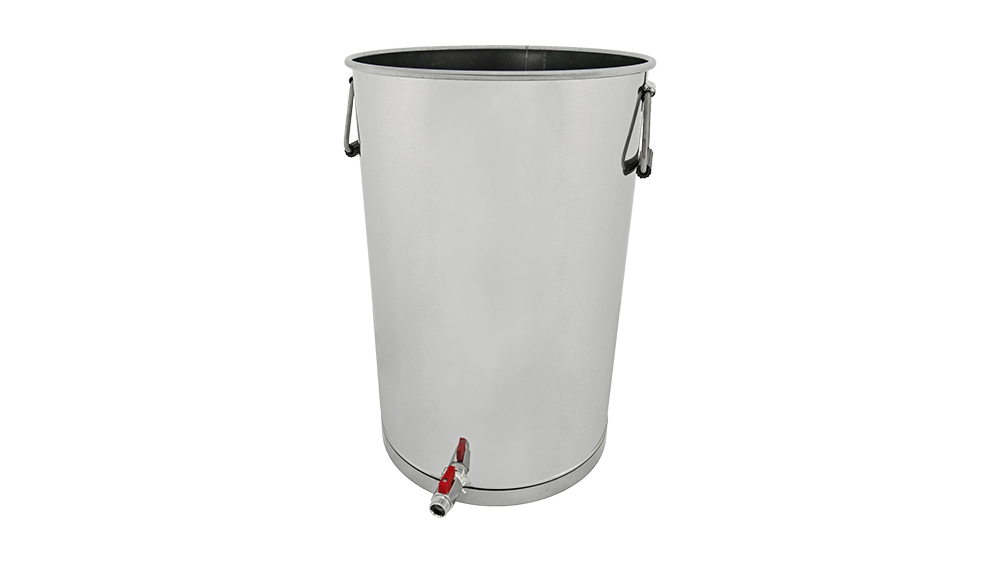

Stainless steel tank with 30-liter capacity, featuring a rinsing insert, specifically designed for PROLAQ WS cleaning fluids. Aids in the efficient separation and collection of contaminants.

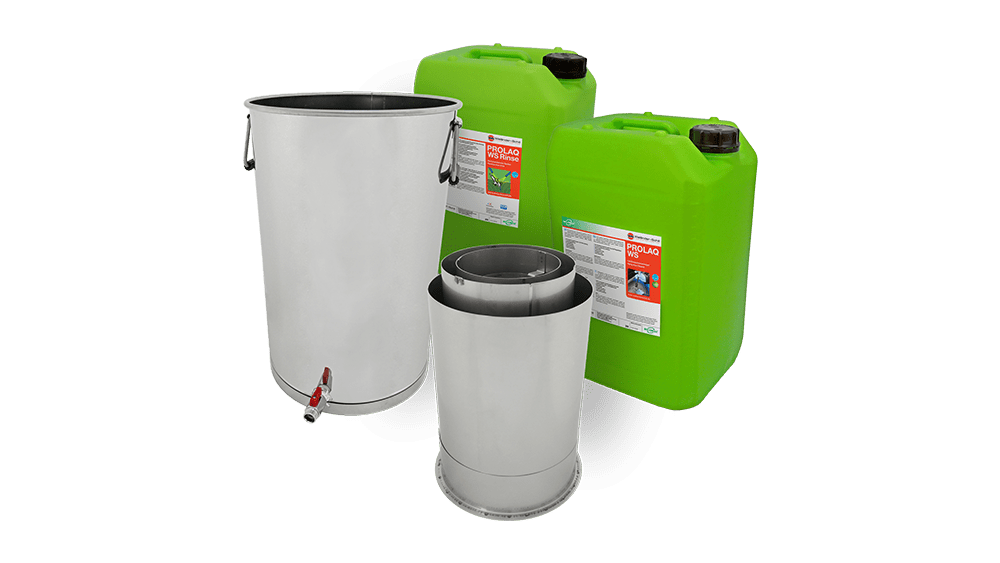

This 3-piece set is ideal for introducing the complete cleaning system, it includes:
1 pc Prolaq WS (20 liters)
1 pc Prolaq WS Rinse (20 liters)
1 pc Cleaning tank with insert (30 liters)
This kit provides exceptionally strong cleaning power against water-based and solvent-based paints, while presenting a significantly lower occupational hazard risk than traditional thinners (e.g., acetone). The low VOC content ensures a more pleasant working environment.

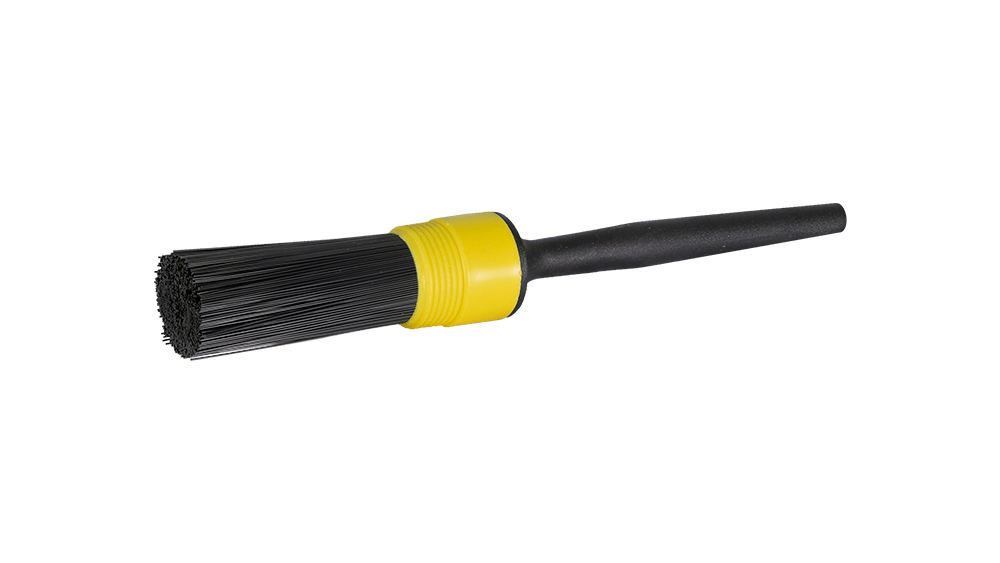

Cleaning Brush (Part Number: 837853): Brush specially designed for the WSM30 + Kit M gun washer.

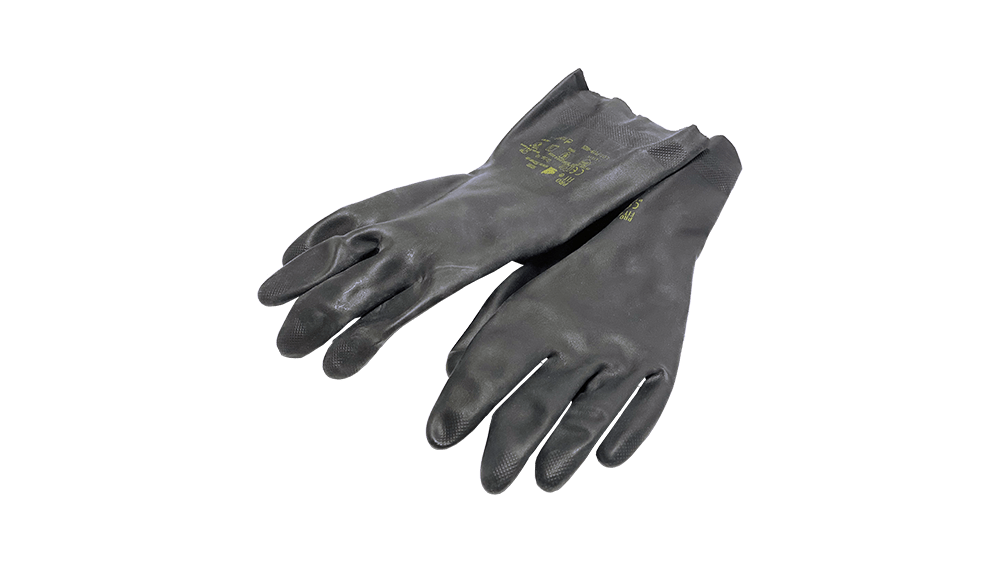

Chemical Protective Glove | Neoprene (Part No.: 881055): Necessary protective equipment when working with chemicals; application areas include tool manufacturing, mechanical engineering, automotive industry, and metal processing.
The Wieländer + Schill WSM30 + Kit M is a professional, safe, and economical solution for the maintenance of spray guns, which significantly contributes to increasing workshop efficiency and employee safety.
