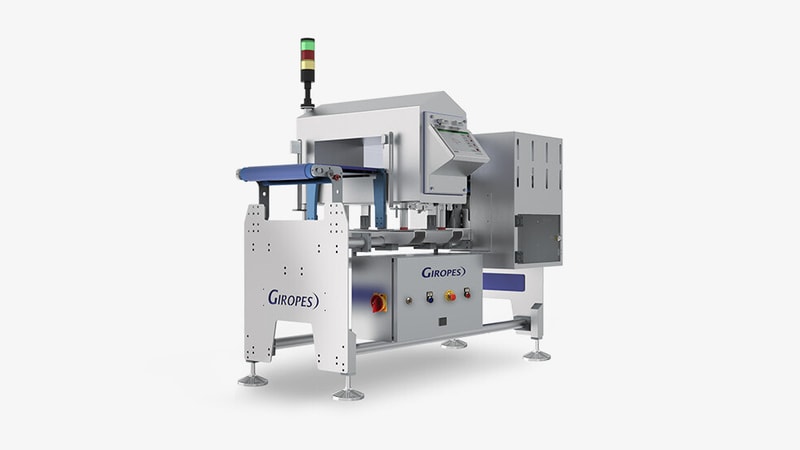

GMD-T Metal Detector with Conveyor Belt and Multifrequency Inspection
The GMD-T is a metal detector with an integrated conveyor belt, designed for maximum accuracy inspection of moving products. Its advanced, multi-frequency detection system guarantees the identification of ferrous, non-ferrous, and stainless steel metals, complying with the strictest quality and safety regulations. This equipment is the ideal solution for enhancing product safety and manufacturing process efficiency.
Key Features and Advantages
The GMD-T is a sophisticated inspection solution featuring the following key functions:
Multifrequency Detection
The system is capable of detecting ferrous, non-ferrous, and stainless steel metals in moving products with exceptional accuracy. The detection sensitivity automatically adjusts to the type of product being inspected, thereby optimizing performance and minimizing false rejects.
Integrated Conveyor System
Modular, adjustable conveying system that can be easily adapted to different product sizes and types. This ensures a continuous and stable inspection process, preventing product jamming or damage.
Automatic Rejection System
Contaminated products are safely removed from the production line automatically. The system supports multiple rejection methods (pneumatic piston, air blast, or rejection flap), ensuring maximum efficiency without production downtime.
Compliance and Traceability
The GMD-T is designed to comply with the strictest industry standards, such as IFS/BRC requirements. It features built-in calibration and data logging protocols that support audits and quality control processes, ensuring full traceability.
GMD-T Technical Data Sheet
The table below summarizes the main technical specifications of the GMD-T metal detector:
| Characteristic |
Spezification |
| Sensor Type |
Tunnel-type metal detector with integrated conveyor system |
| Detectable Materials |
Ferrous, stainless steel, and non-ferrous metals (aluminum, copper, etc.) |
| Structure |
Modular design, AISI 304 stainless steel |
| Standard Tunnel Dimensions (W x H) |
300×150 / 300×200 / 350×150 / 350×200 / 450×200 / 450×300 / 550×450 mm (Custom sizes available upon request) |
| Conveyor Height |
850 – 950 mm (Custom heights available upon request) |
| Total Length |
1,200 mm / 1,500 mm (with rejection system) / 1,800 mm (for long products) |
| Conveying System |
PU-coated fabric conveyor (FDA-compliant) or open modular belt (FDA-compliant), easy to clean |
| Flow Rate |
Adjustable between 5 and 80 m/min |
| Load capacity |
Maximum 20 kg per item |
| Operator Interface |
7” color touchscreen with intuitive interface |
| Connectivity |
Ethernet TCP/IP, RS232, USB (for data download and updates) |
| Operating Voltage |
230 V AC ± 10 % |
| Frequency |
50–60 Hz |
| Maximum Power Consumption |
2.4 A |
Optional Accessories and Customization Options
The flexibility of the GMD-T allows the system to be customized for specific production needs:
Rejection System Options
The chosen rejection mechanism can be selected depending on the weight of the product and the required speed:
-
Pneumatic Cylinder: For products up to 6 kg in weight.
-
Air Jet: For products up to 400 g in weight.
-
Dual Air Jet: For products up to 600 g in weight.
-
Rejection Paddle: For products up to 10 kg in weight.
Additional Sensors and Signaling
Additional accessories available for further monitoring of the production process:
-
Rejection monitoring.
-
Detection of the fullness level of the rejection bin.
-
LED signal tower (green, red, blue) and acoustic alarm.
Protection and Configuration Elements
-
Safety guard above the tunnel and the reject bin, with adjustable side guides.
-
Custom Configurations: Custom tunnel dimensions, SCADA or ERP system integration, automatic HACCP report generation, as well as built-in inspection and calibration modules.
The Role of GMD-T in Quality Assurance
The GMD-T metal detector is not just an inspection device; it is a fundamental element of modern food and pharmaceutical manufacturing. Multi-frequency technology ensures that even the smallest metal contaminants are identified, regardless of their magnetic properties. The integrated conveyor and automatic rejection enable smooth, high-speed production, while compliance with strict standards guarantees consumer trust and adherence to legal requirements. Detailed data logging capability is critical for continuous quality control and rapid troubleshooting.
Related Quality Control Solutions
In addition to the GMD-T, other systems that increase production line efficiency are available, supplementing contamination control:
-

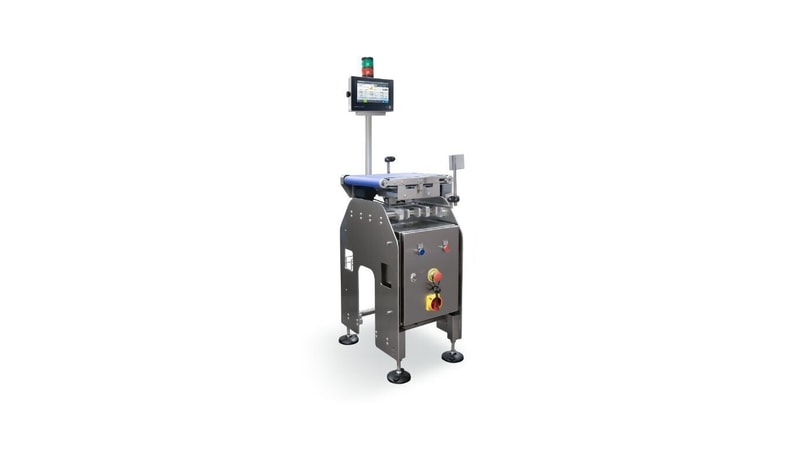

GCW-40ST Static Checkweigher System: A modular industrial weighing solution equipped with a conveyor belt, easily integrable into any production or packaging line.
-
GCW-50ST Static Checkweigher Scale: Precise and modular system with a weighing carriage, offering up to 30 kg capacity. Integrable with software and ERP systems, with an optional rejection system for maximum efficiency.
-

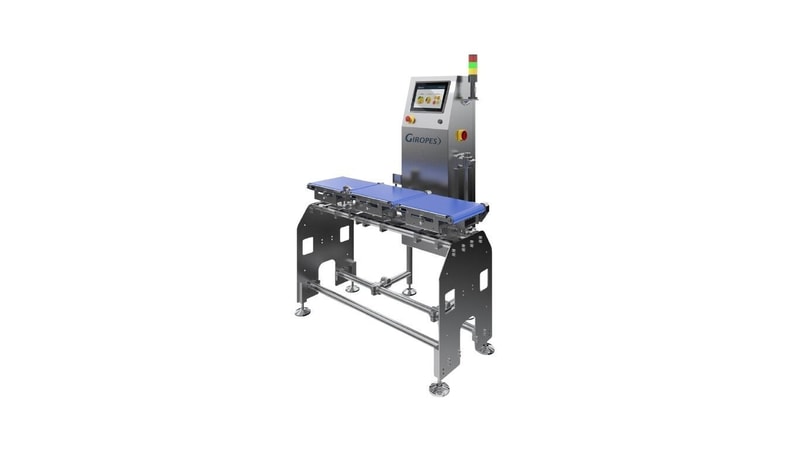

GCW-100DN Dynamic Checkweigher Scale: Automated weighing at high speed and precision, crucial for optimizing production lines.
-

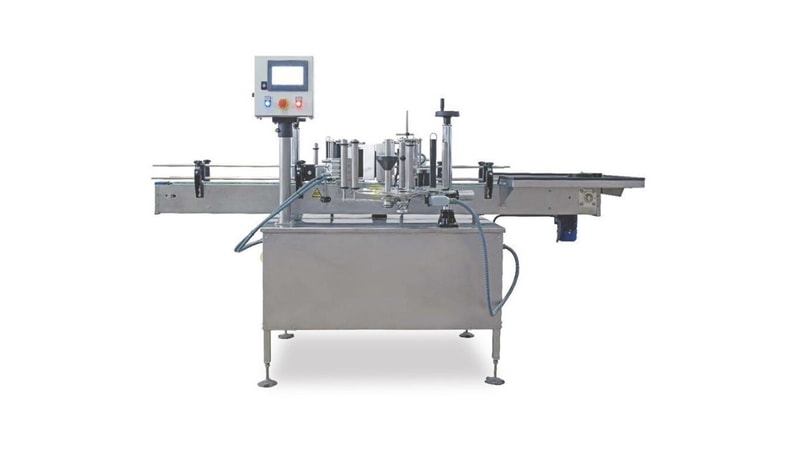

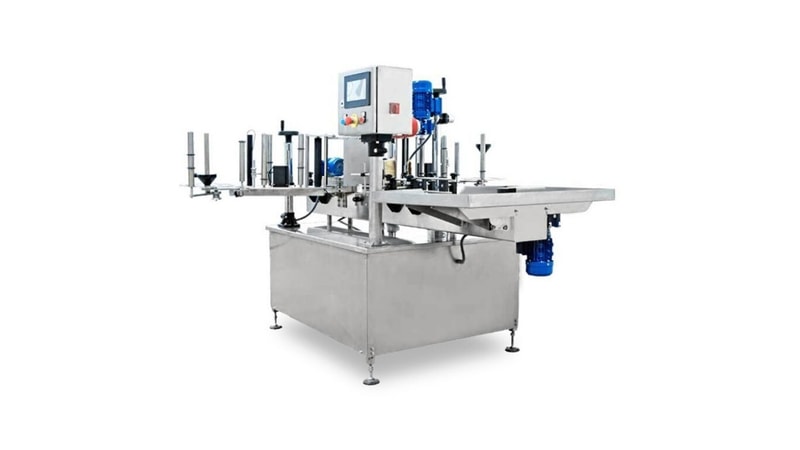

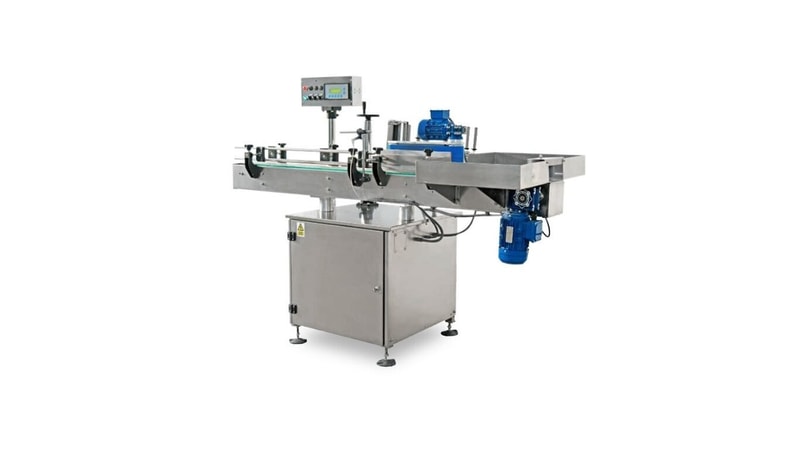

GLM Label Applicators (GLM-0100, GLM-1000, GLM-2000, GLM-3000): Modular, high-throughput systems for fast and precise labeling of containers of various shapes (cylindrical, square) and sizes.
